520nm 30mW Compact Green Dot Laser Diode Module, 3-5V DC, CW Mode, Beam Size <8mm at 20m

VB520D60VG1 Compact Laser Dot Modules

1.Descriptions

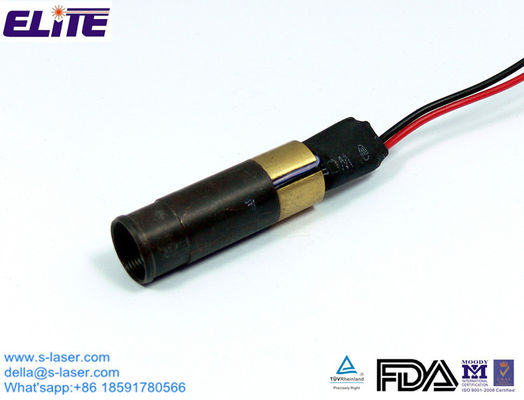

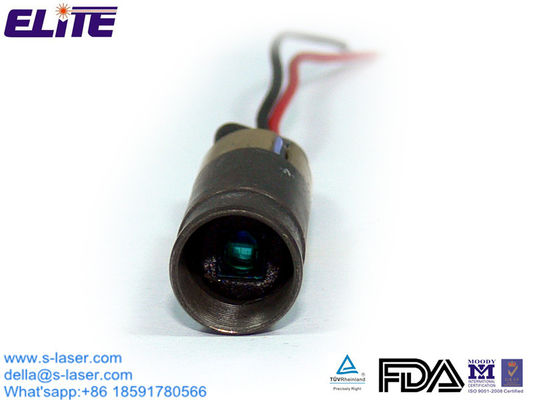

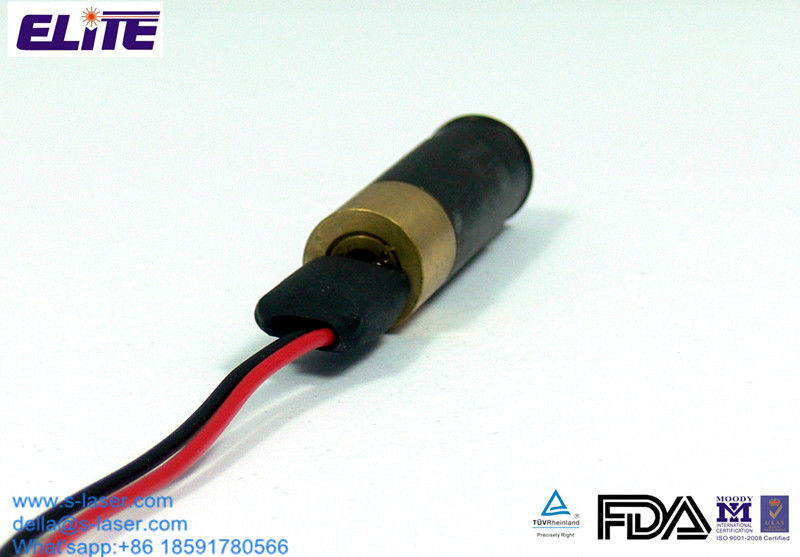

The VB520D60VG1 is a green dot laser subassembly with collimated beam. The maximum laser output power is 30.0 mW at 520nm.

2.Optical and Electrical Characteristics

Wavelength: 520nm
Output Power:  ≤30.0mW

Laser Modes: CW
Output Aperture:Dia.4.5mm
Beam Size: <Dia.8mm (@20m)
Divergence:0.1mrad
Optics:Glass lens
Operating Current:<30mA
Operating Voltage:3-5VDC
MTTF:10000Hrs

CDRH Class: Class IIIb, CDRH/ROHS compatible

Circuit Protection:Static, Surge, and Reverse Polarity Protected

Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C


3.Elite Laser Diode Module Applications:

a.Industrial laser alignment, positioning, pointing, surveying and detection equipment

b. Medical laser treatment instruments

c.3D measurement

d. Metrology equipment

e.Laser test equipment, fire alarm system

f.Laser analytical instrument

g.Chemical analysis, biological analysis

h.Laser diagnostics

i.Microfluidic system

g. Laser gas analysis

k.Oral dental lasers

l.Biomedical analysis

m.DNA sequencing, life science

n.Laboratory equipment, scientific research

o. laser barcode reader

p.Laser tools etc.

4. Why Choose us?

12 years rich industry experience since 2003

SGS TUV assessed supplier

Have FDA, ISO9001:2008, IEC certificates

Cooperation with Top 500 Global Companies like GE, Corning etc.

5. Packaging & Delivery & Payment Information:

MOQ: 2pcs.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.

6.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

7.CAUTION:

The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.

8.Elite Factory:

9.Elite Production Process:

10.Meet us on Exhibitions:

a.Shot Show Exhibition held in USA in January.

b.SPIE Photonics West held in USA in Feb.

c.Laser World of PHOTONICS held in Germany in June.

d.Laser World of PHOTONICS held in China in March.

e.Other laser exhibitions like CIOE China in Sept.
