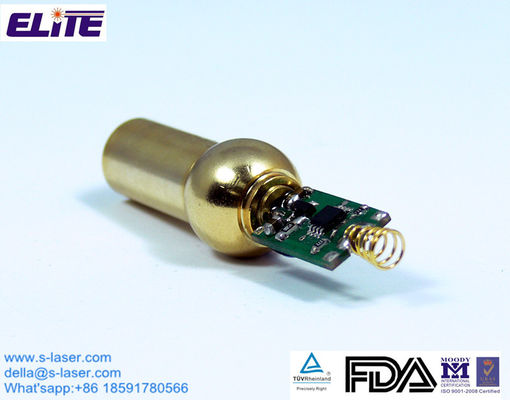

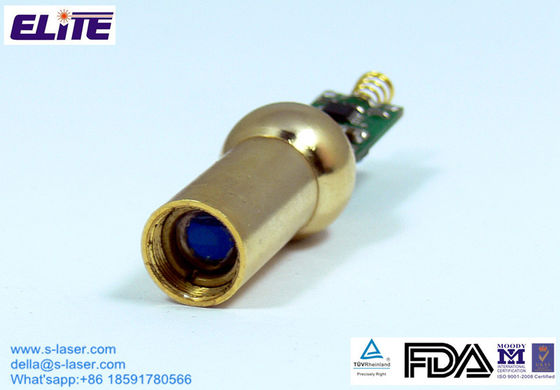

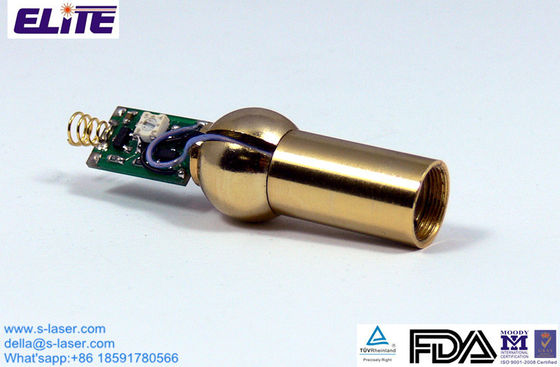

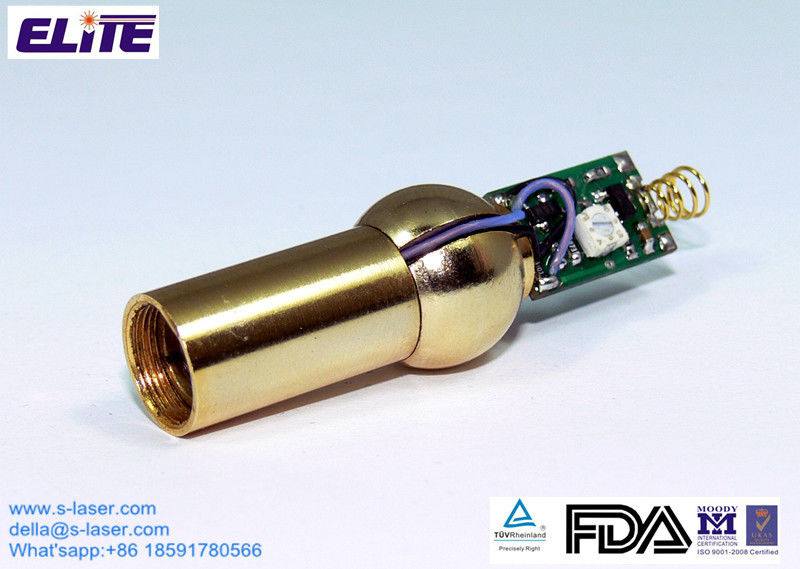

VB520D20VG1 Compact Laser Dot Modules
1.Descriptions
The VB520D20VG1 is a green dot laser subassembly with collimated beam. The maximum laser output power is 10.0 mW at 520nm.
2.Optical and Electrical Characteristics
Wavelength: 520nm
Output Power: ≤10.0mW
Laser Modes: CW
Output Aperture:Dia.4.5mm
Beam Size: <Dia.8mm (@10m)
Divergence:0.1mrad
Optics:Glass lens
Operating Current:<30mA
Operating Voltage:3-5VDC
MTTF:10000Hrs
CDRH Class: Class IIIb, CDRH/ROHS compatible
Circuit Protection:Static, Surge, and Reverse Polarity Protected
Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C
3.Elite Laser Diode Module Applications:
a.Industrial laser alignment, positioning, pointing, surveying and detection equipment
b. Medical laser treatment instruments
c.3D measurement
d. Metrology equipment
e.Laser test equipment, fire alarm system
f.Laser analytical instrument
g.Chemical analysis, biological analysis
h.Laser diagnostics
i.Microfluidic system
g. Laser gas analysis
k.Oral dental lasers
l.Biomedical analysis
m.DNA sequencing, life science
n.Laboratory equipment, scientific research
o. laser barcode reader
p.Laser tools etc.
4. Bore Sight Packages:
a.Plain Poly Bag: free of charge.
b.Plain White Box Package:MOQ:1,000pcs.
c.Blister Package :MOQ:2,000pcs.
d.Pouch Pacakge :MOQ:1,000pcs.
e.SPTE Package :MOQ:1000pcs.
5. Why buy Laser Bore Sighters from AimLaser?
※ Laser Bore Sighters Production Process
※ Laser Bore Sighters Production Equipment
※ Laser Bore Sighters Testing Equipment
6. Delivery & Payment Info.:
MOQ: 10pcs.
Delivery Time: 5-20 days
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
7. Elite Laser Training Cartridge and Laser Bore Sight List:
| Caliber | Notes | Caliber | Notes |
| .223 Rem. | same as 5.56mm Rifle | 45-70Gov. | Rifle |
| 204 | Rifle | 6.5x55mm | Rifle |
| 7.62x39mm | Rifle | 38Spec. | Pistol |
| 7.62x51 US | Rifle | 44Mag. | Pistol |
| 7.62mm RUS | Rifle | 45ACP | Pistol |
| 7.62x54 | Rifle | 45Colt | Pistol |
| 25-06Rem. | Rifle | .22 | Pistol |
| 30-06Spr. | Rifle | 17H.M.R. | Pistol |
| 270Win. | Rifle | 8x57mm | Rifle |
| 243Win. | Rifle | 40S&W | Pistol |
| 308Win. | Rifle | 338LM(Lapua Magnum) | Rifle |
| 260Rem. | Rifle | 50BMG | Rifle |
| 7mm-08Rem. | Rifle | 250(250/3000Savage) | Rifle |
| 358mm | Rifle | 6.5x57mm | Rifle |
| 12 Gauge | Shotgun | 7x57mm Rem. | Rifle |
| 20 Gauge | Shotgun | 7x64mm | Rifle |
| 30 Carbine | Rifle | 7x65mm Rem. | Rifle |
| 9mm Luger | Pistol | 9.3x62mm | Rifle |
| 22-250Rem | Rifle | 303British | Rifle |
| 30-30Win | Rifle | 222Rem. | Rifle |
| 264Win | Rifle | 375H+H | Rifle |
| 8mm Rem. | Rifle | 270WSM | Rifle |
| 300Win. | Rifle | 300WSM | Rifle |
| 7mmRem | Rifle | 5.8mm | Rifle |
